High-Performance PEEK RF Connectors: 3.5mm, 2.92mm, 2.4mm, 1.85mm & 1.0mm

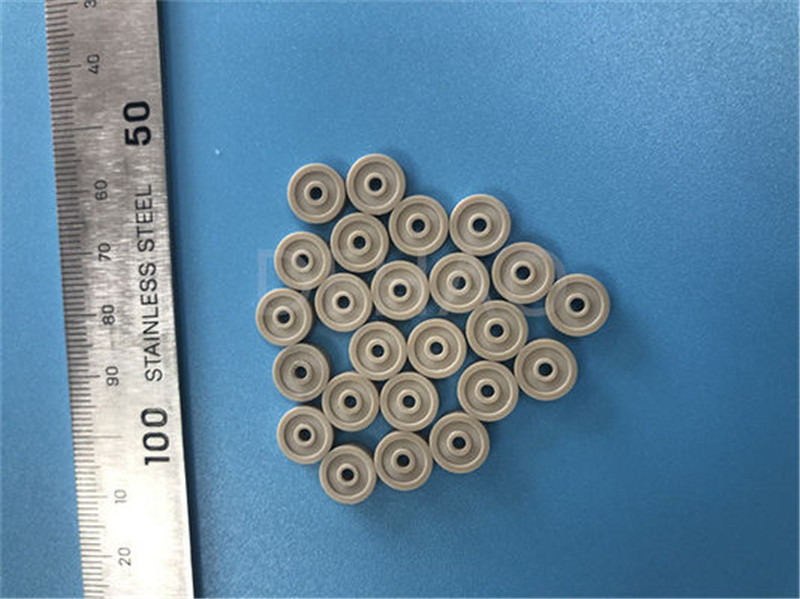

High-Performance PEEK RF Connectors 3.5mm, 2.92mm, 2.4mm, 1.85mm & 1 (1).jpg

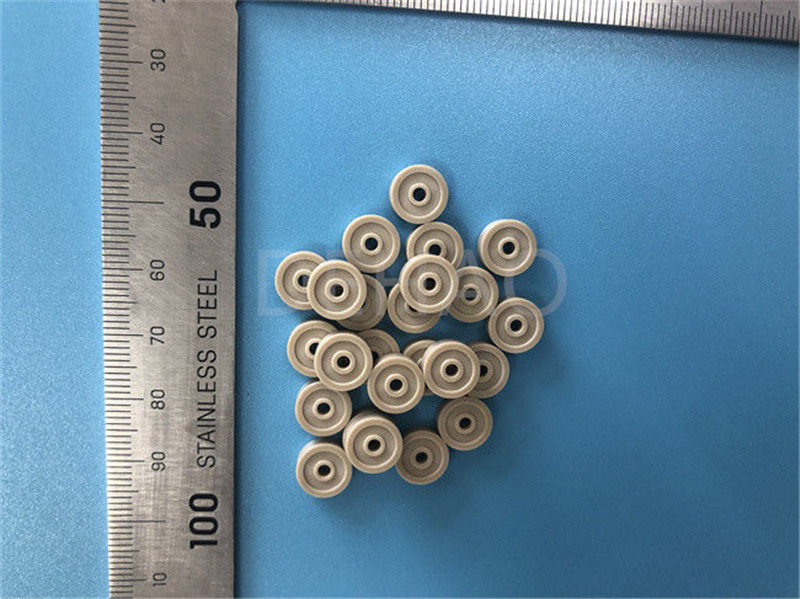

High-Performance PEEK RF Connectors 3.5mm, 2.92mm, 2.4mm, 1.85mm & 1 (2).jpg

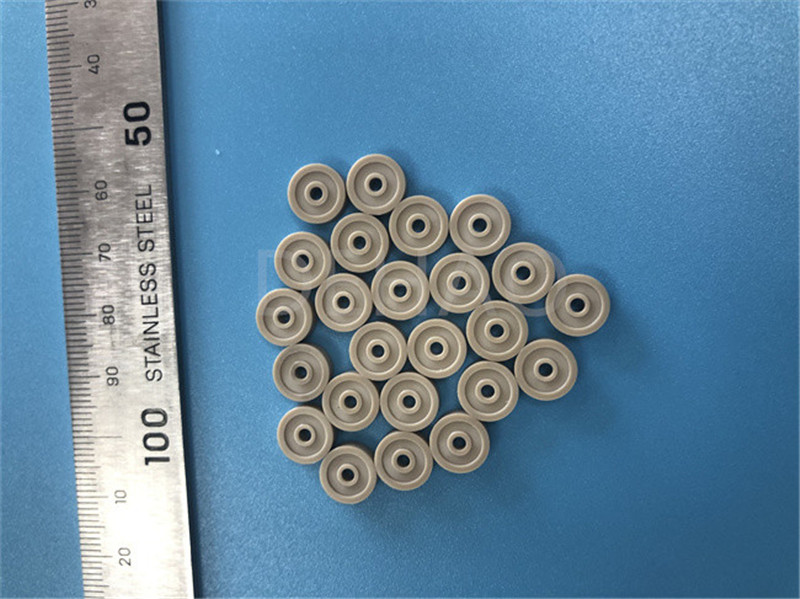

High-Performance PEEK RF Connectors 3.5mm, 2.92mm, 2.4mm, 1.85mm & 1 (3).jpg

High-Performance PEEK RF Connectors: 3.5mm, 2.92mm, 2.4mm, 1.85mm & 1.0mm

PolyEtherEtherKetone (PEEK)

PEEK is a highly versatile material that finds numerous applications in various industries due to its exceptional properties.  One of its key applications is in high-frequency connector insulators, where it is used as an insulating material.  PEEK's high thermal stability, superb flexural and torsional strength, and excellent resistance to chemicals, steam, and hydrolysis make it an ideal material for high-frequency connector insulators.  PEEK's dimensional stability and stiffness also allow it to maintain its shape and resist deformation in high-frequency applications.  Additionally, PEEK's low moisture absorption and good dielectric properties make it an effective insulating material in high-frequency connector applications.  Overall, PEEK is an excellent choice for high-frequency connector insulators due to its exceptional properties and performance in aggressive environments.

    Contact us
    Product Parameters
    Typical Properties Of Peek
    The Materials DEHAO Machines
    Highlight Opaque Glass Filled Peek Machining, OEM Glass Filled Peek Machining, high frequency PEEK Insulator
    Material PEEK
    Color Beige Opaque
    Application Rings Bushings Bearing Sleeves
    Certificate ISO 9001, RoHS, REACH, UL
    Supply Type OEM Service
    Feature Sample, Small Order, Higher Cost Performance
    Shipping Support Express -Sea Freight
    Place Of Origin Kunshan, Suzhou
    Place of Origin China
    Brand Name DeHao
    Certification ISO 9001
    Model Number PEEK Parts
    Minimum Order Quantity 2000 Piece
    Packaging Details PE bag in Cartons
    Delivery Time 10 working days
    Payment Terms L/C, T/T

    UNITS

    ASTM TEST

    PEEK

    PEEK 30% GLASS-FILLED
    Tensile strength

    psi

    D638

    14,000

    24,620
    Flexural modulus

    psi

    D790

    590,000

    1,450,000
    Izod impact (notched)

    ft-lbs/in of notch

    D256

    1.6

    1.84
    Heat deflection temperature @ 264 psi

    °F

    D648

    306

    599
    Maximum continuous service temperature in air

    °F

    480

    482
    Water absorption (immersion 24 hours)

    %

    D570

    0.50

    0.11
    Coefficient of linear thermal expansion

    in/in/°Fx10-5

    D696

    2.6

    1.2
    Coefficient of friction (dynamic)

    0.25

    0.30
    ABS PC PVC PE HDPE UHMWPE
    PMMA PP PPE PPO Nylon PA66
    POM PET PEI PSU PPSU PVDF
    PTFE PFA PCTFE ETFE ECTFE PPS
    PEEK PAI PI PBI Acetal Noryl
    Rexolite Delrin Rulon Duratron TECAPEEK Torlon
    Kel-F Ultem Vespel TPX

    Application

    ● Sliding and wear parts

    ● Food contact parts

    ● Gears

    ● Valve seats

    ● Pump wear parts

    ● Structural parts

    ● Appliance parts

    ● Bushings, bearings, seals and rings

    ● Plug connectors

    ● Wafer carriers

    Properties

    ● Superior wear resistance and dimensional stability to 480°F continuous use

    ● Excellent resistance to chemicals, steam and hydrolysis

    ● Very low moisture absorption

    ● Very high thermal stability (V-O UL 94 rating)

    ● Superb flexural and torsional strength

    ● Abrasion resistant

    ● Good dielectric properties

    ● Good resistance to radiation

    ● Self-extinguishing

    ● FDA, USDA, 3-A Dairy compliant
