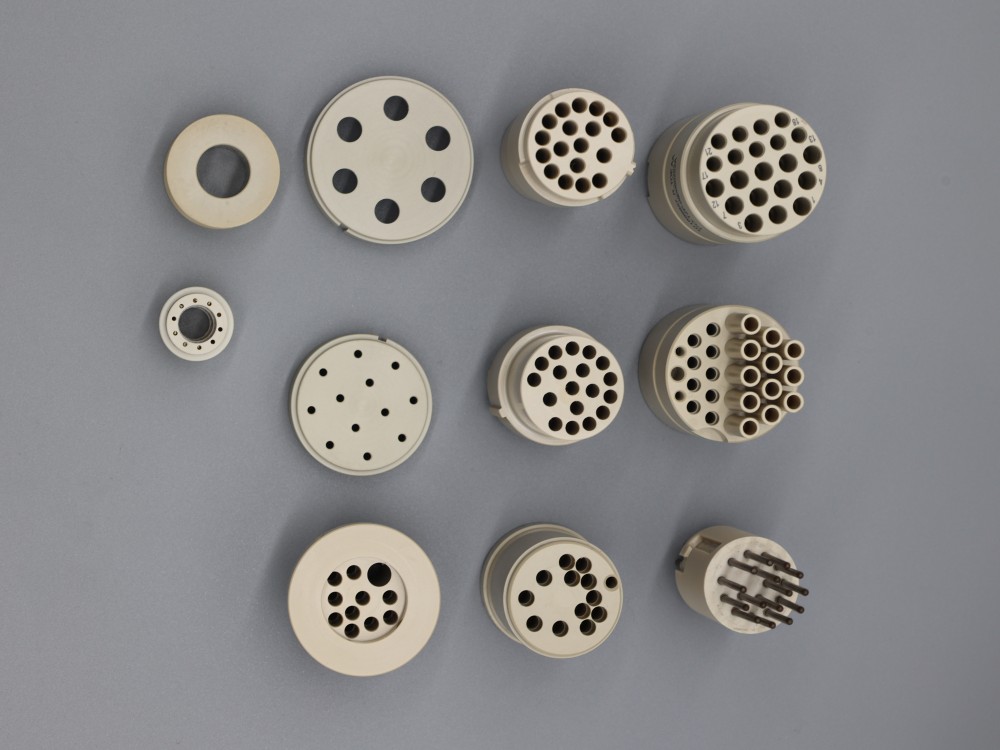

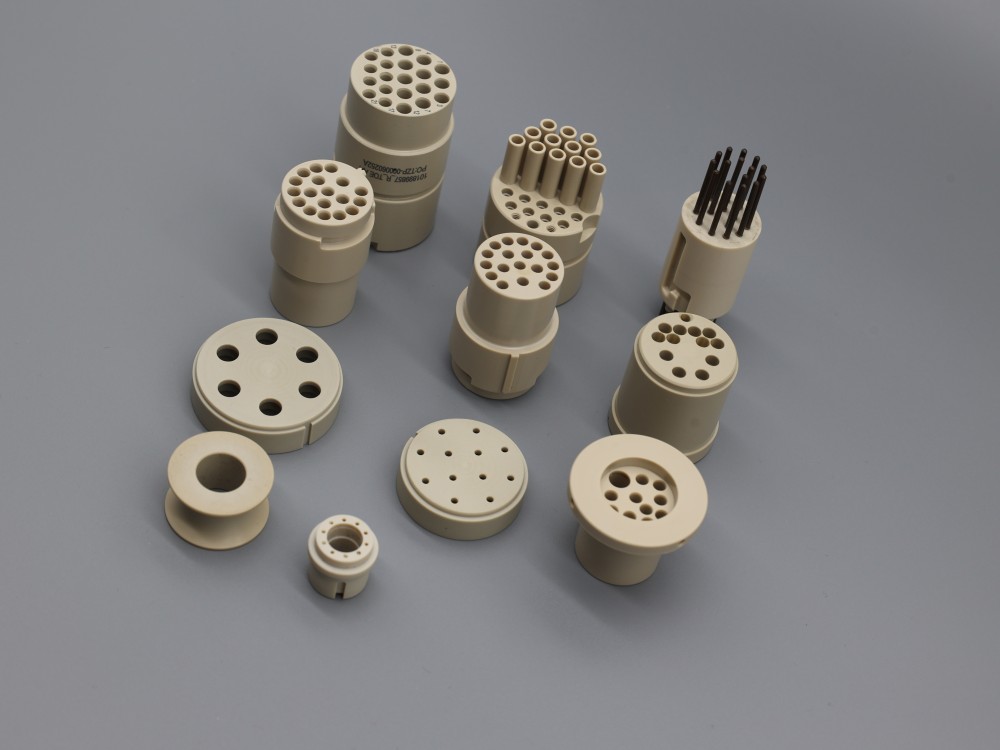

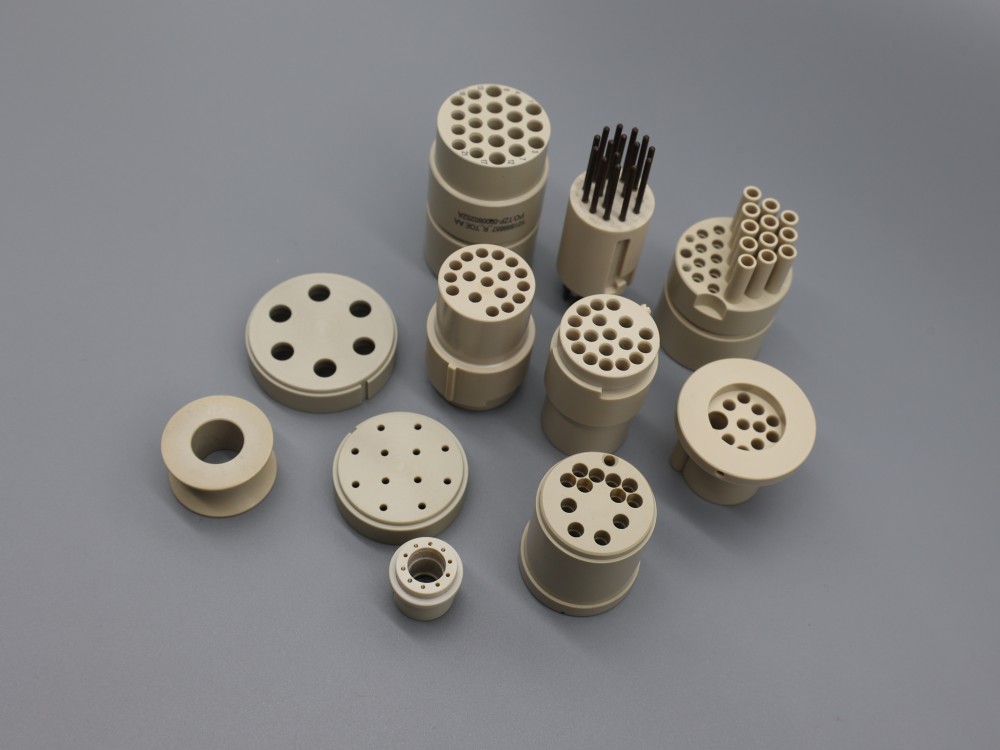

PEEK Insulators for Medical Connectors

In the medical device industry, the reliability and safety of connectors are paramount. The insulator, as the core component of a connector, is responsible for ensuring electrical insulation, mechanical support, and signal integrity. Polyetheretherketone (PEEK), a high-performance specialty engineering plastic, has become the material of choice for manufacturing insulators in medical connectors.

Key Properties and Advantages of PEEK:

1. Excellent Biocompatibility:

PEEK complies with medical-grade biocompatibility standards such as ISO 10993, allowing it to safely contact human tissues or fluids without causing rejection or toxic reactions. This is critical for invasive or implantable medical devices.

2. Outstanding Mechanical Properties:

● High Strength and Stiffness: PEEK maintains exceptional strength and rigidity even at elevated temperatures, ensuring the stability of pins during mating and unmating cycles without bending or breaking.

● Fatigue Resistance: It can withstand repeated insertion and withdrawal cycles, ensuring a long service life.

3. Superior Chemical and Hydrolysis Resistance:

PEEK is resistant to sterilization methods such as Gamma radiation and Ethylene Oxide (EtO). It also exhibits excellent resistance to blood, cleaning agents, and most chemicals. It remains stable under autoclaving (steam sterilization), supporting multiple re-sterilization cycles.

4. Exceptional Electrical Insulation Properties:

PEEK offers excellent dielectric strength and volume resistivity over a wide frequency and temperature range. This effectively prevents current leakage and signal interference, ensuring the accuracy and reliability of data transmission in medical equipment (e.g., imaging systems, patient monitors).

5. High-Temperature Performance:

PEEK has a continuous service temperature of up to 250°C and can withstand short-term exposure above 300°C. This makes it suitable for high-temperature sterilization processes and stable operation in harsh environments, such as near heat-generating components within devices.

6. Precision Processability and Dimensional Stability:

PEEK can be injection molded to produce insulators with complex geometries and tight tolerances. Its very low moisture absorption and high heat deflection temperature ensure long-term dimensional stability in humid or varying temperature environments.

Typical Applications:

● Surgical Tools: Connectors for electrosurgical units (ESU), ultrasonic scalpels, and other energy-based devices.

● Imaging Equipment: High-voltage and signal connectors for CT, MRI, and PET scanners.

● Patient Monitoring Devices: Electrode connectors for ECG (Electrocardiogram) and EEG (Electroencephalogram).

● Implantable Devices: External programmer connectors for neurostimulators and pacemakers.

● Single-Use and Reusable Devices: Used in both reusable devices requiring multiple sterilizations and high-value single-use medical instruments due to its performance benefits.
