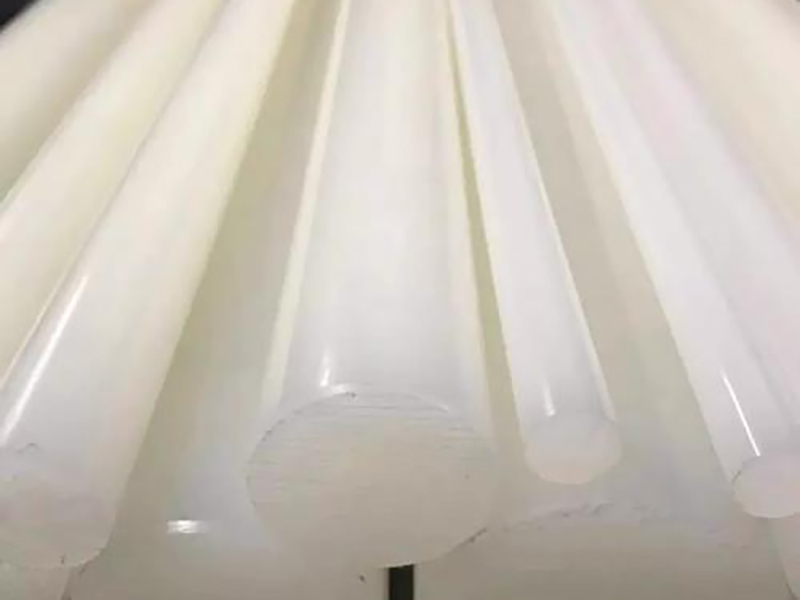

PFA Material

PFA is a tetrafluoroethylene-perfluoroalkoxy vinyl ether copolymer (Polyfluoroalkoxy), which belongs to a category of fluoroplastics. By introducing alkoxy groups onto the perfluorocarbon backbone, its melt viscosity is significantly reduced, enabling it to be processed through conventional thermoplastic processes such as injection molding and extrusion, while retaining the following core properties of polytetrafluoroethylene (PTFE):

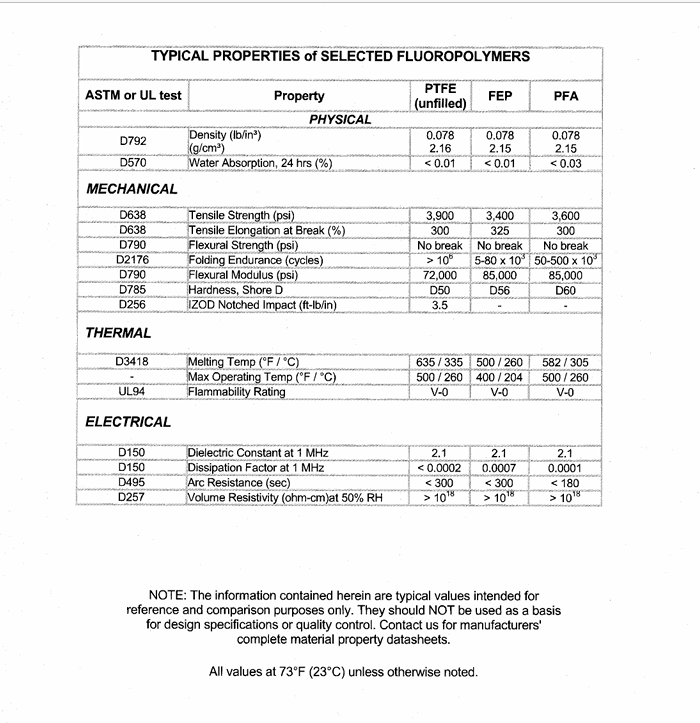

1. Temperature resistance: Long-term use temperature range is -80℃ to 260℃, and it can withstand higher temperatures in the short term.

2. Chemical inertness: It is resistant to almost all strong acids, strong alkalis, and organic solvents, and its corrosion resistance is superior to that of most engineering plastics.

3. Electrical properties: High-frequency insulation is stable, and the dielectric constant is not affected by temperature.

4. Mechanical properties: Its creep resistance, tensile strength (elongation rate 100-300%) and compressive strength are superior to those of PTFE.

PFA, with its comprehensive performance, is widely applied in the following scenarios:

1. Semiconductor manufacturing: used for high-purity reagent transfer pipelines and photoresist containers, as its extremely low leachability can prevent contamination.

2. Medical devices: Meet FDA standards and can be used for implantation in the human body or for manufacturing corrosion-resistant device components.

3. Industrial sealing: valve lining, pump valve bushing, etc., which perform excellently especially in high-pressure, high-temperature corrosive environments.

PTFE Comparison: PFA is a modified copolymer of PTFE, retaining PTFE's chemical resistance, low friction coefficient (0.04), and other characteristics, but with superior processing performance.

• Teflon: PFA is one of the product series under the Teflon trademark, which is a generic term for fluoropolymer products by Chemours.
