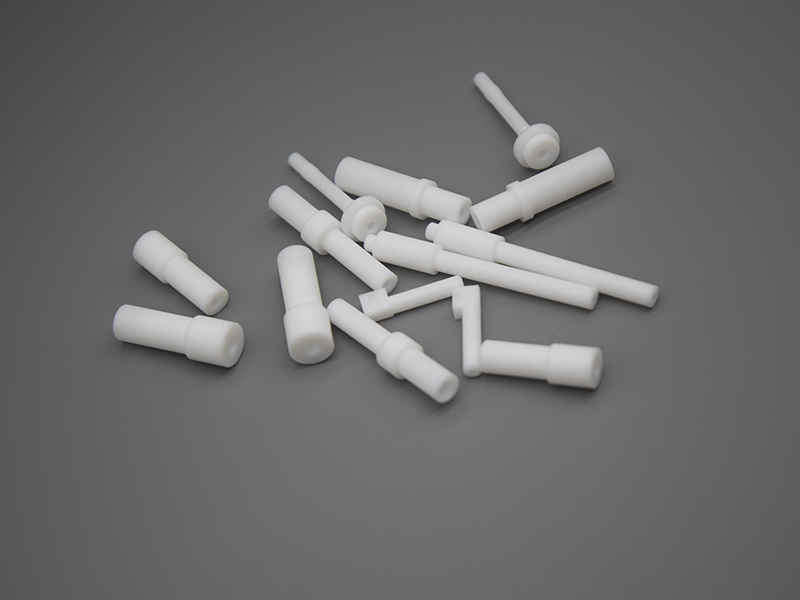

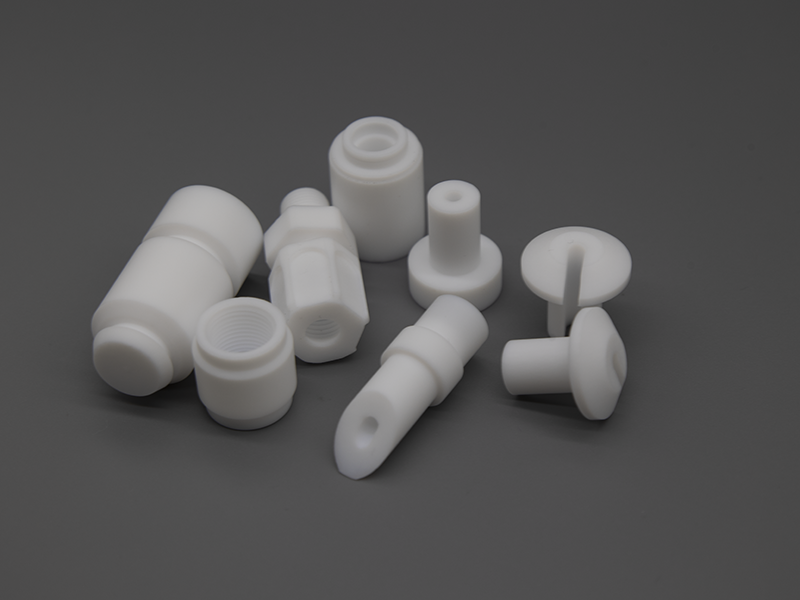

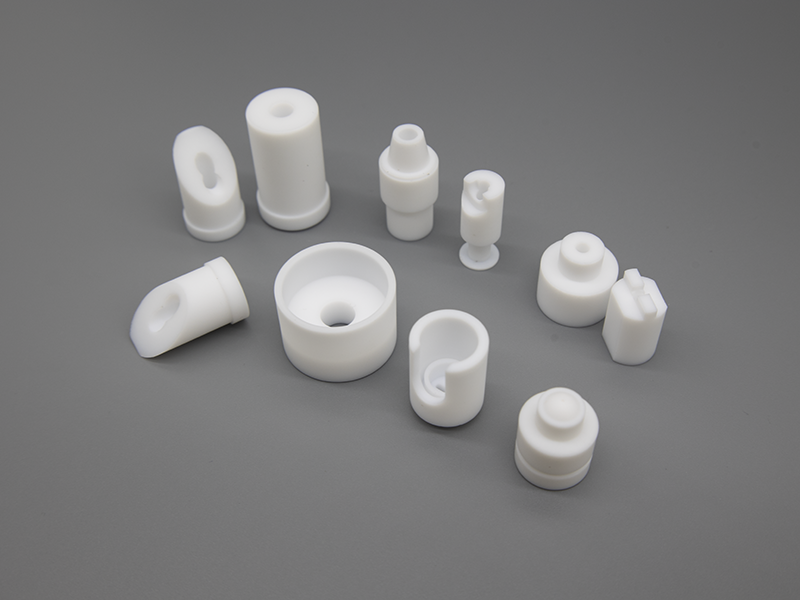

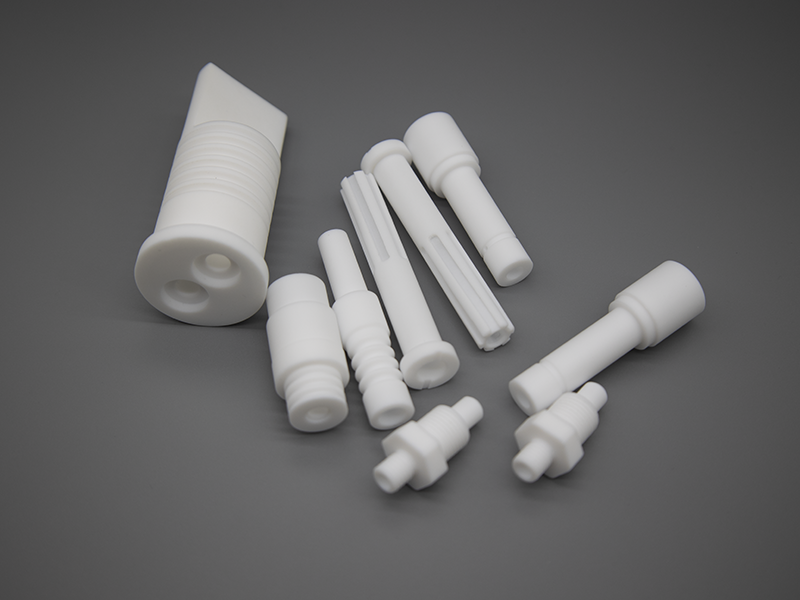

PTFE CNC Parts

Polytetrafluoroethylene (PTFE) is a high-performance fluoropolymer renowned for its exceptional chemical resistance, low friction coefficient, and thermal stability. Its non-stick surface properties make it ideal for applications requiring minimal adhesion, while its wide operating temperature range (-200°C to +260°C) suits extreme environments. The material's inherent lubricity reduces wear in dynamic components, and its dielectric properties enhance electrical insulation capabilities‌.

1.‌Precision Engineering‌: Computer numerical control allows for micron-level accuracy in complex geometries, including intricate profiles and tight tolerances (±0.025mm typical)‌3.

2.‌Material Optimization‌: Unlike conventional molding, CNC machining minimizes material waste through subtractive processing, particularly beneficial for low-volume production of high-value aerospace components.

3.‌Surface Finish Control‌: Post-machining treatments can achieve Ra 0.4μm or better, critical for sealing surfaces in hydraulic systems.

Key Applications

● Aerospace‌: Lightweight structural components (brackets, housings) and fuel system seals where corrosion resistance and weight reduction are paramount‌45.

● Industrial Machinery‌: Wear-resistant bushings, bearings, and pump components in chemical processing environments‌.

● Medical Devices‌: Sterile-grade housings and surgical instrument parts benefiting from PTFE's biocompatibility.

Production Considerations

● Tooling Requirements‌: High-speed carbide cutters with specialized geometries prevent material deformation during machining.

● Environmental Compliance‌: PTFE machining may require fume extraction systems due to potential fluoropolymer emissions at high temperatures.

● Design Guidelines‌: Recommended minimum wall thicknesses of 1.5mm for structural integrity and draft angles ≥2° for moldability in hybrid processes‌.

Quality Assurance

●Dimensional Verification‌: Coordinate measuring machines (CMM) ensure compliance with AS9100D aerospace standards‌.

Material Testing‌: Includes thermal analysis (DSC) and chemical resistance per ASTM D543 protocols‌.

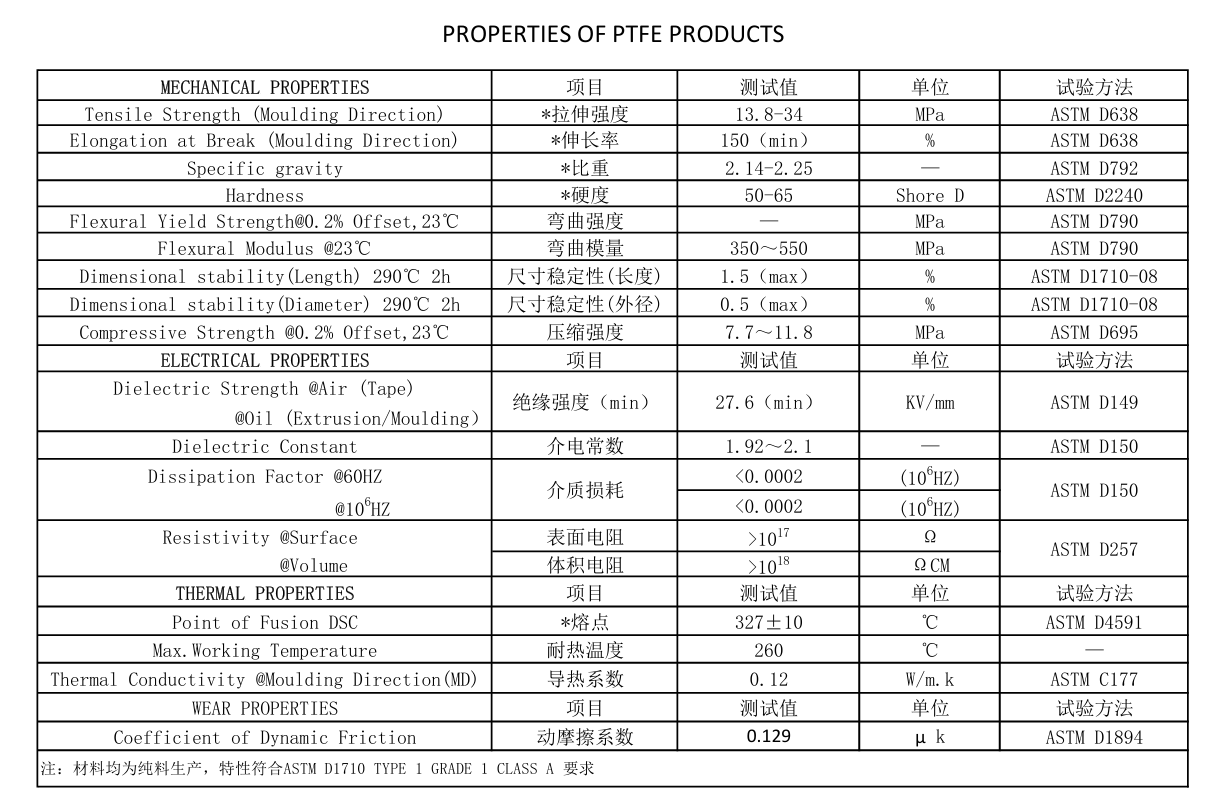

‌1. Thermal Properties‌

● Melting Point‌: 327°C (620°F)

● Long-term Use Temperature‌: -200°C to +260°C (continuous operation)

● Short-term Heat Resistance‌: Up to 300°C (unreinforced), 315°C with glass fiber reinforcement

● Thermal Decomposition‌: Begins at ~400°C in air; melting point at 327°C

‌2. Mechanical Strength‌

● Tensile Strength‌: 20–30 MPa (pure PTFE), 40–50 MPa (glass fiber-reinforced)

● Flexural Strength‌: 15–25 MPa (pure PTFE), 30–40 MPa (reinforced)

● Modulus of Elasticity‌: 0.5–0.7 GPa (pure PTFE), 2–3 GPa (glass fiber-reinforced)

●Impact Resistance‌: Low in pure form but improved with fiber reinforcement (e.g., carbon fiber)

‌3. Chemical Resistance‌

● Resistant to nearly all chemicals (acids, alkalis, solvents), except molten alkali metals and fluorine gas.

● Excellent hydrolysis resistance, suitable for humid/steam environments.

‌4. Electrical & Flammability‌

● Dielectric Strength‌: 15–20 kV/mm

● Flammability Rating‌: UL94 V-0 (self-extinguishing, no additives required)

● Surface Resistivity‌: Can be modified to 10⁶–10⁹ Ω for anti-static properties.

‌5. Dimensional Stability‌

● Water Absorption‌: <0.01% (minimal swelling)

● Molding Shrinkage‌: 1.5–3% (annealing recommended)

‌6. Applications‌

●Automotive‌: Seals, fuel system components (fuel-resistant).

● Electronics‌: High-frequency circuit substrates, insulators.

● Industrial‌: Chemical linings, wear-resistant bearings.

● Medical‌: Implant coatings, corrosion-resistant tubing.
